EP-YBBP سیریز دھماکہ پروف تھری فیز اسینکرونس موٹر

The EP-YBBP Series Explosion-Proof Adjustable-Speed Three-Phase Asynchronous Motor is engineered to meet the highest safety and performance standards for hazardous environments in Colombia. Compliant with RETIE, IECEx, and ATEX certifications, this motor is designed to operate in explosive atmospheres while maintaining optimal efficiency. Featuring advanced Variable Frequency Drive (VFD) compatibility, the EP-YBBP ensures precise speed control and significant energy savings in industries such as oil & gas, chemical processing, and mining. Its flameproof construction, high-density cast iron housing, and independent cooling fan make it perfect for demanding, continuous-duty applications. With its long-lasting insulation and high safety features, this motor guarantees both operational efficiency and protection in critical applications.

Category: Tag:

Description

1. Technical Specifications Matrix

YBBP Series Explosion-Proof Three-Phase Asynchronous Motor Technical Data:

YBBP Series Variable Frequency Adjustable-Speed Explosion-proof Asynchronous Motor
Type Rated Power Rated current (A) Rated Speed Rated Torque Efficiency Power Factor Ist/In Tst/Tn Tmax/Tn Inertia Jm Wt.
kW 380V 400V 415V r/min N.m  η% cosφ times times times kgm2 Kg
Synchronous speed 3000 r/min 50 Hz (2P)
YBBP80M1-2 0.75KW 1.81 1.72 1.66 2840 2.5 75 0.84 6 2.2 2.3 0.005 24
YBBP80M2-2 1.1KW 2.52 2.39 2.31 2840 3.7 78 0.85 6 2.2 2.3 0.0075 33
YBBP90S-2 1.5KW 3.39 3.22 3.11 2880 5 79 0.85 7.5 2.2 2.3 0.0097 37
YBBP90L-2 2.2KW 4.80 4.56 4.39 2890 7.3 81 0.86 7.5 2.2 2.3 0.0174 43
YBBP100L-2 3KW 6.31 6.00 5.78 2900 9.9 83 0.87 7.5 2.2 2.3 0.0303 54
YBBP112M-2 4KW 8.22 7.81 7.53 2900 13.2 85 0.87 7.5 2.2 2.3 0.0631 80
YBBP132S1-2 5.5KW 11.0 10.5 10.11 2930 17.9 86 0.88 7.5 2.2 2.3 0.0733 90
YBBP132S2-2 7.5KW 14.9 14.1 13.63 2930 24.4 87 0.88 7.5 2.2 2.3 0.0762 95
YBBP160M1-2 11KW 21.5 20.4 19.7 2930 35.9 88.4 0.88 7.5 2.2 2.4 0.21 140
YBBP160M2-2 15KW 28.6 27.2 26.2 2930 48.9 89.4 0.89 7.5 2.2 2.4 0.25 152
YBBP160L-2 18.5KW 35.1 33.3 32.1 2930 60.3 90 0.89 7.5 2.2 2.4 0.31 168
YBBP180M-2 22KW 41.0 39.0 37.6 2940 71.5 90.5 0.9 7.5 2 2.3 0.37 220
YBBP200L1-2 30KW 55.4 52.6 50.7 2950 97.1 91.4 0.9 7.5 2 2.3 0.63 290
YBBP200L2-2 37KW 67.9 64.5 62.2 2950 120 92 0.9 7.5 2 2.3 0.73 305
YBBP225M-2 45KW 82.1 78.0 75.2 2970 145 92.5 0.9 7.5 2 2.3 1.28 400
YBBP250M-2 55KW 98.7 93.8 90.4 2970 177 93 0.91 7.5 2 2.3 1.55 460
YBBP280S-2 75KW 134 127 123 2970 241 93.6 0.91 7.5 2 2.3 1.89 625
YBBP280M-2 90KW 160 152 147 2970 289 93.9 0.91 7.5 2 2.3 2.02 728
YBBP315S-2 110KW 195 186 179 2970 354 94 0.91 7.5 1.8 2.2 2.26 1100
YBBP315M-2 132KW 233 222 214 2980 423 94.5 0.91 7.5 1.8 2.2 2.42 1160
YBBP315L1-2 160KW 282 268 259 2980 513 94.6 0.91 7.5 1.8 2.2 2.76 1350
YBBP315L-2 185KW 327 310 299 2980 593 94.6 0.91 7.5 1.8 2.2 3.22 1500
YBBP315L2-2 200KW 352 335 323 2980 641 94.8 0.91 7.5 1.8 2.2 3.41 1600
YBBP355S1-2 185KW 327 310 299 2980 593 94.6 0.91 7.5 1.8 2.2 3.86 1690
YBBP355S2-2 200KW 352 335 323 2980 641 94.8 0.91 7.5 1.8 2.2 4.82 1690
YBBP355M1-2 220KW 387 368 355 2980 705 94.8 0.91 7.5 1.6 2.2 5.46 1840
YBBP355M2-2 250KW 438 417 401 2980 801 95.2 0.91 7.5 1.6 2.2 6.22 2100
YBBP355L1-2 280KW 491 467 450 2980 897 95.2 0.91 7.5 1.6 2.2 6.54 2260
YBBP355L2-2 315KW 551 524 505 2980 1010 95.4 0.91 7.5 1.6 2.2 6.54 2290
YBBP400M-2 400KW 700 665 641 2980 1273 95.4 0.91 7.5 1.5 2 8.2 3010
YBBP400L-2 450KW 788 748 721 2980 1432 95.4 0.91 7.5 1.5 2 9.3 3150
YBBP450S-2 450KW 788 748 721 2980 1432 95.4 0.91 7.5 1.5 2 10.3 3760
YBBP450M-2 500KW 875 831 801 2980 1592 95.4 0.91 7.5 1.5 2 11.7 4020
YBBP450L1-2 560KW 980 931 897 2980 1782 95.4 0.91 7.5 1.5 2 15 4200
YBBP450L2-2 630KW 1103 1047 1010 2980 2005 95.4 0.91 7.5 1.5 2 18 4460
Synchronous speed 1500 r/min 50 Hz (4P)
YBBP80M1-4 0.55KW 1.57 1.49 1.44 1400 3.8 71 0.75 5 2.4 2.3 0.0077 24
YBBP80M2-4 0.75KW 2.03 1.93 1.86 1400 5.1 73 0.77 5 2.4 2.3 0.012 33
YBBP90S-4 1.1KW 2.85 2.71 2.61 1420 7.4 76.2 0.77 6 2.3 2.3 0.015 37
YBBP90L-4 1.5KW 3.68 3.49 3.37 1420 10.1 78.5 0.79 6 2.3 2.3 0.031 43
YBBP100L1-4 2.2KW 5.09 4.84 4.67 1440 14.6 81 0.81 6 2.3 2.4 0.039 47
YBBP100L2-4 3KW 6.73 6.39 6.16 1440 19.9 82.6 0.82 6 2.3 2.4 0.059 58
YBBP112M-4 4KW 8.80 8.36 8.06 1440 26.5 84.2 0.82 6 2.3 2.4 0.113 80
YBBP132S-4 5.5KW 11.6 11.0 10.6 1460 36 86 0.84 7.2 2.3 2.4 0.167 95
YBBP132M-4 7.5KW 15.4 14.6 14.1 1460 49.1 87 0.85 7.2 2.3 2.4 0.186 100
YBBP160M-4 11KW 22.2 21.1 20.4 1460 72 88.4 0.85 7.2 2.2 2.4 0.36 150
YBBP160L4 15KW 30.0 28.5 27.5 1460 98.1 89.4 0.85 7.2 2.2 2.4 0.42 168
YBBP180M-4 18.5KW 36.5 34.7 33.5 1470 120 90.5 0.85 7.2 2.2 2.3 0.68 220
YBBP180L-4 22KW 43.1 41.0 39.5 1470 143 91.2 0.85 7.2 2.2 2.3 0.72 242
YBBP200L-4 30KW 57.6 54.7 52.8 1470 195 92 0.86 7.2 2.2 2.4 0.81 335
YBBP225S-4 37KW 69.9 66.4 64.0 1480 239 92.5 0.87 7.2 2.2 2.4 1.21 400
YBBP225M-4 45KW 84.7 80.5 77.5 1480 290 92.8 0.87 7.2 2.2 2.4 1.85 415
YBBP250M-4 55KW 103 98.1 94.6 1480 355 93 0.87 7.2 2.2 2.4 2.32 560
YBBP280S-4 75KW 140 133 128 1480 484 93.8 0.87 7.2 2.2 2.4 2.86 665
YBBP280M-4 90KW 167 159 153 1485 579 94.2 0.87 7.2 2.2 2.4 3.34 780
YBBP315S-4 110KW 201 191 184 1485 707 94.5 0.88 7.2 2.1 2.2 4.68 1150
YBBP315M-4 132KW 240 228 220 1485 849 94.8 0.88 7.2 2.1 2.2 4.96 1200
YBBP315L1-4 160KW 288 273 264 1485 1029 94.9 0.89 7.2 2.1 2.2 5.22 1320
YBBP315L-4 185KW 333 316 305 1485 1190 94.9 0.89 7.2 2.1 2.2 5.43 1420
YBBP315L2-4 200KW 360 342 329 1485 1286 94.9 0.89 7.2 2.1 2.2 5.62 1500
YBBP355S1-4 185KW 333 316 305 1488 1187 94.9 0.89 7.2 2.1 2.2 6.45 1700
YBBP355S2-4 200KW 360 342 329 1488 1284 94.9 0.89 7.2 2.1 2.2 6.56 1800
YBBP355M1-4 220KW 391 372 358 1488 1412 94.9 0.9 7.2 2.1 2.2 6.88 1830
YBBP355M2-4 250KW 443 421 406 1488 1605 95.2 0.9 7.2 2.1 2.2 7.22 1940
YBBP355L1-4 280KW 497 472 455 1488 1797 95.2 0.9 7.2 2.1 2.2 7.46 2080
YBBP355L2-4 315KW 559 531 511 1488 2022 95.2 0.9 7.2 2.1 2.2 7.68 2260
YBBP400S-2 355KW 621 590 569 2980 1130 95.4 0.91 7.5 1.5 2 6.8 2940
YBBP400S-4 355KW 630 598 576 1490 2260 95.2 0.9 7.2 1.4 2 13.9 3090
YBBP400M-4 400KW 709 674 650 1490 2546 95.2 0.9 7.2 1.4 2 15 3160
YBBP400L-4 450KW 798 758 731 1490 2865 95.2 0.9 7.2 1.4 2 16.3 3290
YBBP450S-4 450KW 798 758 731 1490 2865 95.2 0.9 7.2 1.4 2 21 3910
YBBP450M-4 500KW 887 842 812 1490 3183 95.2 0.9 7.2 1.4 2 24 4170
YBBP450L1-4 560KW 993 943 909 1490 3565 95.2 0.9 7.2 1.4 2 25.6 4350
YBBP450L2-4 630KW 1117 1061 1023 1490 4011 95.2 0.9 7.2 1.4 2 32.2 4670
YBBP5001-4 710KW 1252 1190 1147 1490 4551 96.8 0.89 — — 2 40 5800
YBBP5002-4 800KW 1411 1340 1292 1490 5128 96.8 0.89 — — 2 44 6250
YBBP5003-4 900KW 1586 1506 1452 1490 5769 96.9 0.89 — — 2 59 6800
YBBP5004-4 1000KW 1762 1674 1613 1490 6409 96.9 0.89 — — 2 64 7350
Synchronous speed 1000 r/min 50 Hz (6P)
YBBP80M1-6 0.37KW 1.27 1.21 1.17 910 3.9 63 0.7 4 2.1 2.1 0.012 37
YBBP80M2-6 0.55KW 1.76 1.67 1.61 910 5.8 66 0.72 4 2.1 2.1 0.017 43
YBBP90S-6 0.75KW 2.29 2.18 2.10 940 7.6 69 0.72 4 2.1 2.1 0.02 54
YBBP90L-6 1.1KW 3.14 2.98 2.87 940 11.2 73 0.73 5 2.1 2.1 0.039 80
YBBP100L-6 1.5KW 4.00 3.80 3.66 960 14.9 75 0.76 5 2.1 2.1 0.068 90
YBBP112M-6 2.2KW 5.57 5.29 5.10 960 21.9 79 0.76 5 2.1 2.1 0.161 105
YBBP132S-6 3KW 7.31 6.94 6.69 960 29.8 81 0.77 6 2.1 2.4 0.203 120
YBBP132M1-6 4KW 9.62 9.14 8.81 970 39.4 81 0.78 6 2.1 2.4 0.258 136
YBBP132M2-6 5.5KW 12.9 12.3 11.8 970 54.1 83 0.78 6.5 2.1 2.4 0.234 140
YBBP160M-6 7.5KW 17.0 16.1 15.5 970 73.8 85 0.79 6.5 2.1 2.4 0.46 154
YBBP160L-6 11KW 24.3 23.1 22.3 970 108 87 0.79 6.5 2.1 2.4 0.61 176
YBBP180L-6 15KW 31.6 30.0 28.9 970 148 89 0.81 7 2.1 2.1 1.01 225
YBBP200L1-6 18.5KW 37.6 35.7 34.5 970 182 90 0.83 7 2.1 2.4 1.62 290
YBBP200L2-6 22KW 44.5 42.3 40.7 970 217 90.5 0.83 7 2.1 2.4 1.84 315
YBBP225M-6 30KW 58.2 55.3 53.3 980 292 91 0.86 7 2.1 2.4 2.43 410
YBBP250M-6 37KW 71.4 67.9 65.4 980 361 91.5 0.86 7 2.1 2.4 2.68 525
YBBP280S-6 45KW 86.4 82.1 79.1 980 439 92 0.86 7 2.1 2.4 3.46 635
YBBP280M-6 55KW 105 99.5 95.9 980 536 92.8 0.86 7 2.1 2.2 3.97 730
YBBP315S-6 75KW 142 135 130 985 727 93.5 0.86 7 2 2 4.57 1080
YBBP315M-6 90KW 170 161 155 985 873 93.8 0.86 7 2 2 4.83 1140
YBBP315L1-6 110KW 207 196 189 985 1067 94 0.86 7 2 2 5.32 1310
YBBP315L2-6 132KW 245 232 224 985 1280 94.2 0.87 7 2 2 5.95 1400
YBBP355S-6 160KW 293 279 269 985 1551 94.2 0.88 7 1.9 2 7.32 1650
YBBP355M1-6 185KW 339 322 310 985 1794 94.2 0.88 7 1.9 2 7.89 1760
YBBP355M2-6 200KW 365 347 335 985 1939 94.5 0.88 7 1.9 2 8.17 1970
YBBP355L1-6 220KW 402 382 368 985 2133 94.5 0.88 7 1.9 2 8.25 2140
YBBP355L2-6 250KW 457 434 418 985 2424 94.5 0.88 7 1.9 2 8.36 2250
YBBP400S-6 280KW 509 483 466 990 2674 95 0.88 7 1.3 2 20 2930
YBBP400M-6 315KW 572 544 524 990 3008 95 0.88 7 1.3 2 24 3220
YBBP400L-6 355KW 645 613 591 990 3390 95 0.88 7 1.3 2 25 3320
YBBP450S-6 355KW 645 613 591 990 3390 95 0.88 7 1.3 2 26 3490
YBBP450M-6 400KW 727 691 666 990 3820 95 0.88 7 1.3 2 29 3700
YBBP450L1-6 450KW 818 777 749 990 4297 95 0.88 7 1.3 2 32 3880
YBBP450L2-6 500KW 909 863 832 990 4775 95 0.88 7 1.3 2 35 4160
YBBP450L3-6 560KW 1018 967 932 990 5347 95 0.88 7 1.3 2 37 4450
YBBP5001-6 630KW 1167 1109 1069 990 6077 96.5 0.85 — — 2 40 5860
YBBP5002-6 710KW 1315 1249 1204 990 6849 96.5 0.85 — — 2 43 6050
YBBP5003-6 800KW 1479 1405 1354 990 7717 96.7 0.85 — — 2 47 6780
YBBP5004-6 900KW 1664 1580 1523 990 8682 96.7 0.85 — — 2 51 7250
Synchronous speed 750 r/min 50 Hz (8P)
YBBP80M1-8 0.18KW 0.87 0.83 0.80 710 2.4 53 0.59 3.3 1.9 1.9 0.016 35
YBBP80M2-8 0.25KW 1.13 1.08 1.04 710 3.4 55 0.61 3.3 1.9 1.9 0.023 41
YBBP90S-8 0.37KW 1.44 1.37 1.32 710 5 63 0.62 4 1.8 2 0.0097 54
YBBP90L-8 0.55KW 2.07 1.97 1.90 710 7.4 64 0.63 4 1.8 2 0.0174 80
YBBP100L1-8 0.75KW 2.36 2.24 2.16 710 10.1 71 0.68 4 1.8 2 0.0174 90
YBBP100L2-8 1.1KW 3.32 3.15 3.04 710 14.8 73 0.69 4 1.8 2 0.0303 105
YBBP112M-8 1.5KW 4.16 3.95 3.81 710 20.2 75 0.73 4 1.8 2 0.0631 120
YBBP132S-8 2.2KW 5.80 5.51 5.31 710 29.6 79 0.73 5.5 1.8 2.2 0.0733 125
YBBP132M-8 3KW 7.71 7.32 7.06 710 40.4 81 0.73 5.5 1.8 2.2 0.0764 125
YBBP160M1-8 4KW 10.3 9.76 9.41 720 53.1 81 0.73 6 1.9 2.2 0.32 138
YBBP160M2-8 5.5KW 13.4 12.8 12.3 720 73 83 0.75 6 1.9 2.2 0.46 144
YBBP160L-8 7.5KW 17.6 16.8 16.2 720 99.5 85 0.76 6 1.9 2.2 0.61 175
YBBP180L-8 11KW 25.3 24.0 23.1 730 144 87 0.76 6 1.9 2.2 1.06 225
YBBP200L-8 15KW 33.7 32.0 30.9 730 196 89 0.76 6.5 1.9 2.2 1.6 315
YBBP225S-8 18.5KW 40.0 38.0 36.7 730 242 90 0.78 6.5 1.9 2.2 2.28 375
YBBP225M-8 22KW 47.4 45.0 43.4 730 288 90.5 0.78 6.5 1.9 2.2 2.74 395
YBBP250M-8 30KW 63.4 60.2 58.1 730 393 91 0.79 6.5 1.9 2 3.67 530
YBBP280S-8 37KW 77.8 73.9 71.2 740 478 91.5 0.79 6.5 1.8 2 5.16 605
YBBP280M-8 45KW 94.1 89.4 86.1 740 581 92 0.79 6.5 1.8 2 5.82 700
YBBP315S-8 55KW 111 106 102 740 710 92.8 0.81 6.5 1.8 2 6.74 920
YBBP315M-8 75KW 150 143 138 740 968 93.5 0.81 6.5 1.8 2 7.35 1100
YBBP315L1-8 90KW 180 171 165 740 1162 93.8 0.81 6.5 1.8 2 8.79 1120
YBBP315L2-8 110KW 220 209 201 740 1420 94 0.81 6.5 1.8 2 9.18 1300
YBBP355S-8 132KW 263 250 241 740 1704 94.2 0.81 6.5 1.8 2 10.19 1640
YBBP355M-8 160KW 319 303 292 740 2065 94.2 0.81 6.5 1.8 2 11.24 1820
YBBP355L1-8 185KW 368 350 337 740 2388 94.2 0.81 6.5 1.8 2 12.48 2100
YBBP355L2-8 200KW 397 377 364 740 2581 94.5 0.81 6.5 1.2 2 13.56 2200
YBBP400S-8 220KW 430 409 394 745 2801 94.8 0.82 6.5 1.2 2 18.6 3150
YBBP400M-8 250KW 489 464 447 745 3183 94.8 0.82 6.5 1.2 2 19.6 3250
YBBP400L-8 280KW 547 520 501 745 3565 94.8 0.82 6.5 1.2 2 21.5 3420
YBBP450S-8 315KW 614 584 563 745 4011 95 0.82 6.5 1.2 2 32.8 3750
YBBP450M-8 355KW 692 658 634 745 4520 95 0.82 6.5 1.2 2 36 3920
YBBP450L-8 400KW 780 741 714 745 5093 95 0.82 6.5 1.2 2 40.9 4160
YBBP5001-8 450KW 879 835 805 745 5769 96 0.81 — — 2 68.9 5680
YBBP5002-8 500KW 977 928 895 745 6409 96 0.81 — — 2 74.2 6360
YBBP5003-8 560KW 1093 1038 1001 745 7179 96.1 0.81 — — 2 80.1 6680
YBBP5004-8 630KW 1213 1153 1111 745 8076 96.2 0.82 — — 2 89.3 7150
Synchronous speed 600 r/min 50 Hz (10P)
YBBP250M1-10 18.5KW 41.7 39.7 38.2 585 302 91 0.74 6 1.8 2 2.68 380
YBBP250M2-10 22KW 49.6 47.2 45.5 585 359 91 0.74 6 1.8 2 3.74 545
YBBP280S-10 30KW 67.7 64.3 62.0 585 490 91 0.74 6 1.5 2 5.63 625
YBBP280M-10 37KW 83.5 79.3 76.4 585 604 91 0.74 6 1.5 2 6.06 720
YBBP315S-10 45KW 99.6 94.7 91.2 585 735 91.5 0.75 6 1.2 2 7.32 1110
YBBP315M-10 55KW 121 115 111 585 898 92 0.75 6 1.2 2 7.68 1150
YBBP315L1-10 75KW 162 154 148 585 1224 92.5 0.76 6 1.2 2 8.85 1300
YBBP315L2-10 90KW 191 181 175 585 1469 93 0.77 6 1.2 2 9.68 1640
YBBP355S-10 90KW 191 181 175 585 1469 93 0.77 6 1.2 2 10.36 1820
YBBP355M1-10 110KW 230 219 211 585 1796 93 0.78 6.5 1.2 2 11.31 2100
YBBP355M2-10 132KW 275 261 252 585 2155 93.5 0.78 6.5 1.2 2 12.23 2200
YBBP355L1-10 160KW 333 317 305 585 2612 93.5 0.78 6.5 1.2 2 13.56 2260
YBBP355L2-10 185KW 372 353 340 585 3020 94.5 0.8 6.5 1.2 2 14.56 2300
YBBP400S-10 200KW 402 382 368 595 3183 94.5 0.8 6.5 1.2 2 18.4 3150
YBBP400M-10 220KW 442 420 405 595 3501 94.5 0.8 6.5 1.2 2 23.4 3260
YBBP400L-10 250KW 496 471 454 595 3979 94.5 0.81 6.5 1.2 2 25.9 3470
YBBP450S-10 250KW 496 471 454 595 3979 94.5 0.81 6.5 1.2 2 44.3 3810
YBBP450M-10 280KW 553 525 506 595 4456 95 0.81 6.5 1.2 2 47.7 3970
YBBP450L1-10 315KW 622 591 570 595 5013 95 0.81 6.5 1.2 2 47.7 3980
YBBP450L2-10 355KW 701 666 642 595 5650 95 0.81 6.5 1.2 2 53.1 4120
YBBP5001-10 400KW 800 760 732 595 6420 95 0.8 — — 2 76.8 5460
YBBP5002-10 450KW 900 855 824 595 7223 95 0.8 — — 2 84.6 6120
YBBP5003-10 500KW 997 948 913 595 8025 95.2 0.8 — — 2 92.7 6680
Synchronous speed 500 r/min 50 Hz (12P)
YBBP250M-12 18.5KW 44.4 42.2 40.6 490 361 90.5 0.7 5.5 1.5 2 3.88 530
YBBP280S-12 22KW 52.8 50.1 48.3 490 429 90.5 0.7 5.5 1.5 2 5.79 620
YBBP280M-12 30KW 72.0 68.4 65.9 490 585 90.5 0.7 5.5 1.5 2 6.24 730
YBBP315S-12 37KW 83.7 79.5 76.6 490 721 92 0.73 6.5 1.2 2 6.94 970
YBBP315M-12 45KW 102 96.7 93.2 490 877 92 0.73 6.5 1.2 2 7.65 1150
YBBP315L1-12 55KW 124 118 114 490 1072 92 0.73 6.5 1.2 2 9.12 1170
YBBP315L2-12 75KW 167 159 153 490 1462 93.5 0.73 6.5 1.2 2 9.48 1350
YBBP355S-12 75KW 167 159 153 490 1462 93.5 0.73 6.5 1.2 2 10.19 1720
YBBP355M1-12 90KW 200 190 183 490 1754 93.5 0.73 6.5 1.2 2 11.54 1900
YBBP355M2-12 110KW 245 233 224 490 2144 93.5 0.73 6.5 1.2 2 12.78 2180
YBBP355L1-12 132KW 286 272 262 490 2573 93.5 0.75 6.5 1.2 2 13.96 2280
YBBP355L2-12 160KW 345 328 316 490 3118 94 0.75 6.5 1.2 2 14.93 2340
YBBP400S-12 185KW 383 364 351 495 3533 94 0.78 6.5 1.2 2 20.2 1950
YBBP400M-12 200KW 414 394 379 495 3820 94 0.78 6.5 1.2 2 23.5 2120
YBBP400L-12 220KW 439 417 402 495 4202 94 0.81 6.5 1.2 2 27.2 2200
YBBP450S-12 220KW 439 417 402 495 4202 94 0.81 6.5 1.2 2 38.3 3960
YBBP450M-12 250KW 496 471 454 495 4775 94.5 0.81 6.5 1.2 2 44.4 4120
YBBP450L-12 280KW 556 528 509 495 5347 94.5 0.81 6.5 1.2 2 51.1 4260
YBBP5001-12 315KW 649 616 594 495 6077 94.6 0.78 — — 2 2.32 5580
YBBP5002-12 355KW 729 693 668 495 6849 94.8 0.78 — — 2 2.86 6320
YBBP5003-12 400KW 811 770 742 495 7717 94.9 0.79 — — 2 3.34 6860
Synchronous speed 425 r/min 50 Hz (14P)
YBBP315S-14 30KW 70.8 67.2 64.8 423 677 92 0.7 6.5 1.2 2 7.65 970
YBBP315M-14 37KW 87.3 82.9 79.9 423 835 92 0.7 6.5 1.2 2 9.12 1150
YBBP315L1-14 45KW 106 101 97.2 423 1016 92 0.7 6.5 1.2 2 9.48 1170
YBBP315L2-14 55KW 130 123 119 423 1242 92 0.7 6.5 1.2 2 10.19 1350
YBBP355S-14 75KW 172 163 158 423 1693 92 0.72 6.5 1.2 2 11.54 1720
YBBP355M1-14 90KW 205 195 188 423 2032 92.5 0.72 6.5 1.2 2 12.78 1900
YBBP355M2-14 110KW 251 238 230 423 2484 92.5 0.72 6.5 1.2 2 13.96 2180
YBBP355L-14 132KW 298 283 273 423 2980 93.5 0.72 6.5 1.2 2 14.93 2280
YBBP400S-14 160KW 351 334 322 422 3561 93.5 0.74 6.5 1.2 2 18.9 1960
YBBP400M-14 185KW 404 384 370 422 4118 94 0.74 6.5 1.2 2 23.2 2080
YBBP400L-14 200KW 414 394 379 422 4452 94 0.78 6.5 1.2 2 27.8 2230
YBBP450S-14 200KW 414 394 379 422 4452 94 0.78 6.5 1.2 2 38.3 3760
YBBP450M-14 220KW 456 433 417 422 4897 94 0.78 6.5 1.2 2 44.4 3820
YBBP450L-14 250KW 518 492 474 422 5565 94 0.78 6.5 1.2 2 51.1 4160
YBBP5001-14 280KW 610 580 559 422 6337 94.2 0.74 — — 2 6.56 5460
YBBP5002-14 315KW 687 652 629 422 7129 94.2 0.74 — — 2 6.88 6310
YBBP5003-14 355KW 773 734 708 422 8034 94.3 0.74 — — 2 74.3 6760
Synchronous speed 375 r/min 50 Hz (16P)
YBBP315S-16 22KW 55.8 53.0 51.1 368 571 90.7 0.66 6.5 1.2 2 8.65 920
YBBP315M-16 30KW 76.1 72.3 69.7 368 779 90.7 0.66 6.5 1.2 2 9.92 1100
YBBP315L1-16 37KW 93.5 88.8 85.6 368 960 91.1 0.66 6.5 1.2 2 10.48 1120
YBBP315L2-16 45KW 114 108 104 368 1168 91.1 0.66 6.5 1.2 2 11.19 1300
YBBP355S-16 55KW 138 131 127 368 1427 91.5 0.66 6.5 1.2 2 12.54 1640
YBBP355M1-16 75KW 186 177 170 368 1946 91.5 0.67 6.5 1.2 2 13.78 1820
YBBP355M2-16 90KW 221 210 202 368 2336 92.5 0.67 6.5 1.2 2 14.96 2100
YBBP355L-16 110KW 266 252 243 368 2855 92.5 0.68 6.5 1.2 2 15.63 2200
YBBP400S-16 132KW 317 301 290 370 3361 93 0.68 6.5 1.2 2 82.6 1980
YBBP400M-16 160KW 373 355 342 370 4074 93 0.7 6.5 1.2 2 90.8 2100
YBBP400L-16 185KW 432 410 395 370 4711 93 0.7 6.5 1.2 2 29.3 2260
YBBP450S-16 185KW 432 410 395 370 4711 93 0.7 6.5 1.2 2 38.3 3860
YBBP450M-16 200KW 467 443 427 370 5093 93 0.7 6.5 1.2 2 44.4 3990
YBBP450L-16 220KW 513 488 470 370 5602 93 0.7 6.5 1.2 2 51.1 4120
YBBP5001-16 250KW 574 545 526 370 6453 93.2 0.71 — — 2 78.8 5980
YBBP5002-16 280KW 641 609 587 370 7227 93.5 0.71 — — 2 86.6 6220
YBBP5003-16 315KW 719 683 658 370 8130 93.8 0.71 — — 2 94.7 6460

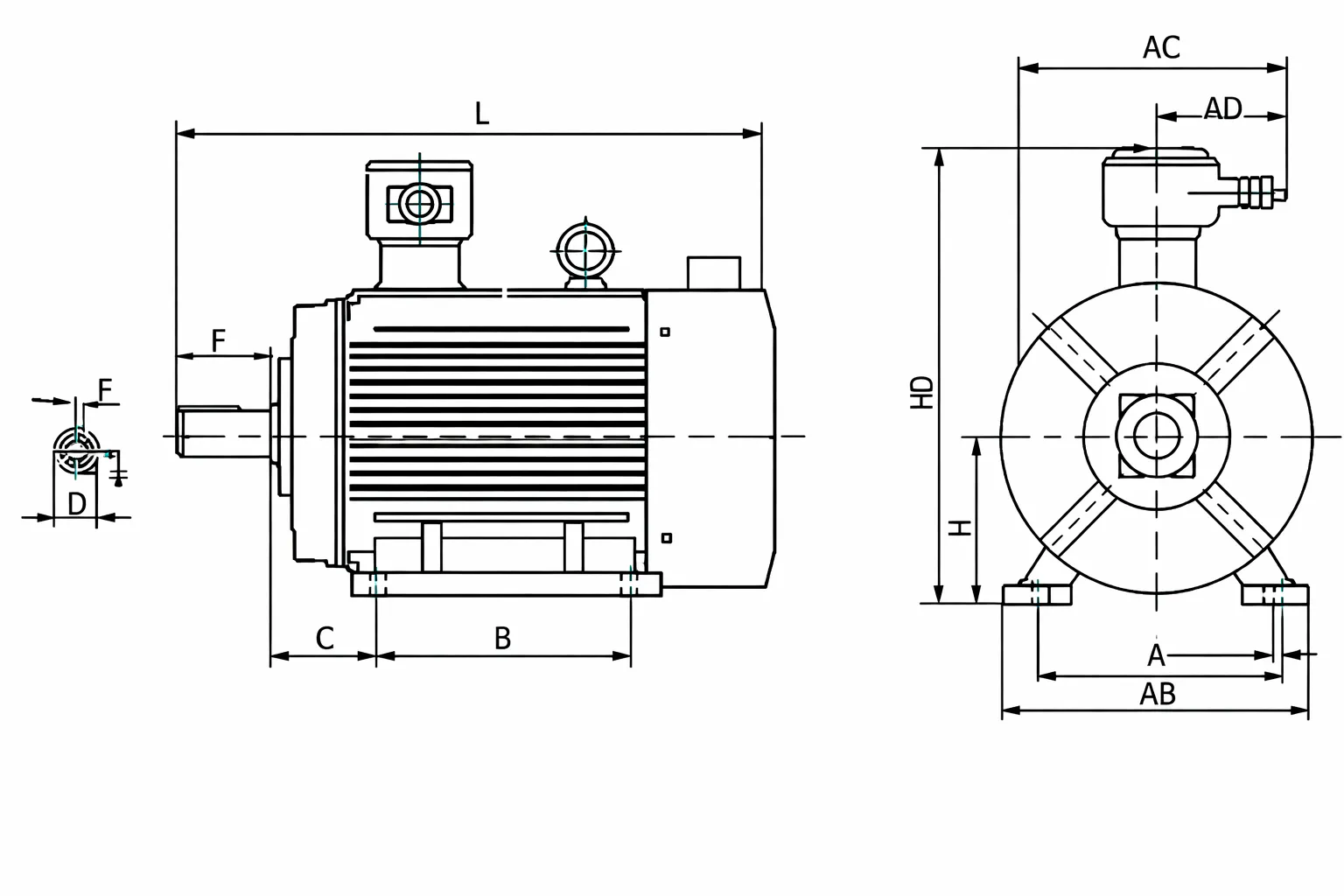

YBBP Series Explosion Proof Three Phase Asynchronous Motor Installation Dimension:

acmotors-EP- YBBP Series Explosion Proof Adjustable-Speed Three Phase Asynchronous Motor-draft



Frame size Poles Mounting dimension(mm) Contour dimension(mm)
H A B C D E F G K AB AC AD HD L
80M 2,4,6,8 80 125 100 50 19 40 6 15.5 10 165 165 180 320 440
90S 90 140 100 56 24 50 8 20 10 180 180 180 350 490
90L 90 140 125 56 24 50 8 20 10 180 180 180 350 515
100L 100 160 140 63 28 60 8 24 12 205 205 180 400 560
112M 112 190 140 70 28 60 8 24 12 250 230 200 420 560
132S 132 216 140 89 38 80 10 33 12 280 270 200 450 600
132M 132 216 178 89 38 80 10 33 12 280 270 200 450 630
160M 160 254 210 108 42 110 12 37 14.5 330 325 220 520 780
160L 160 254 254 108 42 110 12 37 14.5 330 325 220 520 820
180M 180 279 241 121 48 110 14 42.5 14.5 355 360 220 550 895
180L 180 279 279 121 48 110 14 42.5 14.5 355 360 220 550 915
200L 200 318 305 133 55 110 16 49 18.5 390 400 250 645 970
225S 4,8 225 356 286 149 60 140 18 53 18.5 440 450 250 710 1025
225M 2 225 356 311 149 55 110 16 49 18.5 440 450 250 710 1035
225M 4,6,8 225 356 311 149 60 140 18 53 18.5 440 450 250 710 1055
250M 2 250 406 349 168 60 140 18 53 24 495 500 300 730 1085
250M 4,6,8 250 406 349 168 65 140 18 58 24 495 500 300 730 1085
280S 2 280 457 368 190 65 140 18 58 24 545 560 300 810 1210
280S 4,6,8 280 457 368 190 75 140 20 67.5 24 545 560 300 810 1210
280M 2 280 457 419 190 65 140 18 58 24 545 560 300 810 1275
280M 4,6,8 280 457 419 190 75 140 20 67.5 24 545 560 300 810 1275
315S 2 315 508 406 216 65 140 18 58 28 640 630 400 1020 1270
315S 4,6,8,10 315 508 406 216 80 170 22 71 28 640 630 400 1020 1350
315M 2 315 508 457 216 65 140 18 58 28 640 630 400 1020 1390
315M 4,6,8,10 315 508 457 216 80 170 22 71 28 640 630 400 1020 1470
315L 2 315 508 508 216 65 140 18 58 28 640 630 400 1020 1390
315L 4,6,8,10 315 508 508 216 80 170 22 71 28 640 630 400 1020 1470
355S 2 610 500 254 75 140 20 67.5 28 745 750 500 1100 1570
355S 4,6,8,10 610 500 254 95 170 25 86 28 745 750 500 1100 1630
355M 2 610 560 254 75 140 20 67.5 28 745 750 500 1100 1650
355M 4,6,8,10 610 560 254 95 170 25 86 28 745 750 500 1100 1710
355L 2 610 630 254 75 140 20 67.5 28 745 750 500 1100 1800
355L 4,6,8,10 610 630 254 95 170 25 86 28 745 750 500 1100 1820
Note: 1.The drawing is B3 type with frame but no flange.
2.H80-90 have no lifting bolts.

2. Regulatory Compliance: RETIE and Global Explosion Proof Standards

Operating electrical equipment in hazardous areas in Colombia requires strict adherence to a complex web of national and international regulations. The EP-YBBP Series is manufactured to fully comply with the RETIE (Reglamento Técnico de Instalaciones Eléctricas), specifically Article 28, which governs equipment used in potentially explosive atmospheres. This certification is mandatory for installation in Colombia and ensures that our motors meet the essential safety requirements to prevent ignition of flammable gases, vapors, or dust. Our motors also align with NTC 2050 (Colombian Electrical Code), which dictates installation practices in hazardous locations (Class I, II, III).

On a global scale, to ensure the highest level of trust and interoperability, the EP-YBBP series is certified under the IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres) scheme and the European ATEX Directive (2014/34/EU). We provide motors marked as Ex d IIB T4 Gb or Ex d IIC T4 Gb, indicating a flameproof enclosure capable of containing an internal explosion without propagating flames to the external atmosphere. For our clients with North American equipment specifications, we can also benchmark against NEMA MG-1 and UL standards for hazardous locations. This multi-layered compliance strategy ensures that choosing Colombia Ever-power is a decision backed by verified safety data.

3. Engineering Mechanics: Working Principle, Metallurgy, and Industrial Scenarios

The ac motor working principle of the EP-YBBP series integrates advanced variable frequency technology with heavy-duty explosion-proof containment. Mechanically, the motor features a “Flameproof” (Ex d) enclosure made from high-density cast iron. The principle is not to prevent the gas from entering the motor, but to ensure that if the gas enters and ignites, the resulting explosion is contained within the robust housing. The “flame paths” (gaps between joints) are precision-machined to be long and narrow, cooling any escaping hot gases below the ignition temperature of the surrounding atmosphere.

Electrically, the EP-YBBP differs from standard induction motors. It is designed for Variable Frequency Drive (VFD) operation. Standard motors rely on a shaft-mounted fan for cooling; as speed decreases, cooling decreases, leading to overheating. The EP-YBBP utilizes a separate, constant-speed axial flow fan (forced ventilation IC416) powered independently. This ensures optimal thermal management even when the motor is running at 5Hz or holding torque at zero speed. The stator windings use corona-resistant enameled wire and VPI (Vacuum Pressure Impregnation) insulation to resist the high dV/dt voltage spikes generated by modern PWM inverters.

acmotors-EP- YBBP Series Explosion Proof Adjustable-Speed Three Phase Asynchronous Motor-draft2

4. Critical Application Scenarios in Colombia:

1. Oil & Gas Midstream (Casanare): Driving variable speed transfer pumps where flow rates change based on pipeline pressure, requiring Zone 1 compliance.

2. Chemical Processing (Cartagena): Mixing agitators in reactors handling volatile solvents; precise speed control is needed for reaction kinetics.

3. Underground Coal Mining (Cundinamarca/Boyacá): Conveyor belts and winches where methane gas (firedamp) is present.

4. Grain Terminals (Santa Marta): Handling grain dust (Class II hazardous area) with variable speed blowers to prevent dust explosions.

5. Market Trend Analysis: The Intelligent Hazardous Area Evolution

The market for explosion-proof motors in Colombia is witnessing a significant transformation driven by digitization and energy efficiency regulations. The days of using oversized, fixed-speed motors with mechanical throttling are fading. The trend is decisively moving towards Variable Frequency Drive (VFD) Integration. Facility managers in Ecopetrol and major mining conglomerates are prioritizing motors like the EP-YBBP that can modulate speed to match process demand, resulting in energy savings of up to 40% in pump and fan applications.

Another emerging trend is Predictive Maintenance in Hazardous Zones. While traditional ac motor working principle remains consistent, the integration of smart sensors (vibration, temperature) within the explosion-proof enclosure is becoming a standard requirement. The EP-YBBP series is designing to accommodate these monitoring systems without compromising the Ex d integrity. Furthermore, there is a shift towards higher efficiency classes (IE3 and IE4) even in hazardous areas, as Colombian environmental laws become stricter regarding industrial carbon footprints.

8. Related Products

Our gearbox is the perfect companion for the EP-YS سیریز ایلومینیم ہاؤسنگ تھری فیز اسینکرونس موٹر, offering superior performance and seamless integration in a wide range of industrial applications. Engineered with precision, our gearboxes are designed to efficiently transfer power from the motor to machinery, optimizing torque and speed for various systems like conveyors, air compressors, and industrial fans.

Made from high-quality materials, our gearboxes feature robust construction for long-lasting durability, even under heavy loads. The gears are manufactured using advanced heat-treatment processes, ensuring excellent wear resistance and minimal maintenance. With a range of gear ratios, our gearboxes offer the flexibility to adjust motor speed and torque to meet the specific demands of your application.

Whether you’re looking to reduce the rotational speed for high-torque output or increase speed for faster operation, our gearboxes provide a reliable and efficient solution. Additionally, they are designed to work in tandem with the EP-YS motor, enhancing its performance and efficiency. From food processing plants in Bogotá to manufacturing units in Medellín, our gearboxes deliver exceptional reliability and smooth operation, reducing downtime and improving overall productivity.

acmotors-related-part-gearbox

Frequently Asked Questions (FAQ)

Q1. What is the difference between YB2 and YBBP explosion proof motors?

A1. The YB2 series is a standard fixed-speed explosion-proof motor. The YBBP series is designed specifically for variable frequency (VFD) operation. YBBP motors feature an independent forced cooling fan (IC416) to prevent overheating at low speeds and have reinforced insulation to withstand VFD voltage spikes, whereas YB2 motors may fail or overheat if used with an inverter.

Q2. Are EP-YBBP motors compliant with RETIE for use in Colombian oil refineries?

A2. Yes, absolutely. All EP-YBBP motors imported and sold by Colombia Ever-power are fully compliant with RETIE regulations. We provide the necessary certificates of conformity required for installation in hazardous areas (Class I, Division 1/2 equivalents) in Colombia’s oil and gas sector.

Q3. Can I use a standard AC motor with a VFD in a hazardous area?

A3. No, this is highly dangerous and illegal under RETIE. Standard AC motors are not certified to contain an internal explosion. Furthermore, running a standard motor on a VFD can cause surface temperatures to rise beyond the T-rating (e.g., T4), potentially igniting the surrounding explosive gas. You must use a certified Ex d VFD-rated motor like the EP-YBBP.

Q4. What is the price of an EP-YBBP 30kW motor delivered to Barranquilla?

A4. The price depends on the specific speed (poles), voltage, and mounting type required. However, our EP-YBBP series is competitively priced against major European brands. We offer EXW, FOB, and CIF terms. Please click the “Get a Quote” button for a precise calculation including shipping to Barranquilla port.

Q5. How to connect single phase asynchronous motor vs three phase explosion proof motor?

A5. Explosion-proof motors for industrial use are almost exclusively three-phase (EP-YBBP). They connect directly to the VFD output terminals. Single-phase motors use capacitors which are potential ignition sources and are rarely used in Ex d designs. If you have single-phase power, use a Single-to-Three Phase VFD to drive our three-phase YBBP motor.

Q6. Do these motors come with PTC thermistors for thermal protection?

A6. Yes, protection is critical in hazardous areas. Our EP-YBBP motors typically come with PTC thermistors embedded in the windings. These must be connected to the VFD or a protection relay to trip the motor if the internal temperature approaches the T4 limit (135°C), ensuring safety.

Q7. What is the frequency range of the EP-YBBP motor?

A7. The EP-YBBP is designed for a wide frequency range. It offers Constant Torque from 5Hz to 50Hz (or 60Hz) and Constant Power from 50Hz to 100Hz. The independent cooling fan ensures it remains cool even when running at very low speeds (e.g., 5Hz) for prolonged periods.

Q8. Where can I find ac motors near me in Medellin for mining applications?

A8. Colombia Ever-power supplies mining-grade explosion-proof motors across Colombia. We can ship directly to Medellin or mining sites in Antioquia. We keep stock of common frame sizes for urgent replacements. Contact our sales team for current inventory and lead times.

Q9. Does the motor include the VFD (Variable Frequency Drive)?

A9. The EP-YBBP is the motor only, designed to be controlled by a VFD. The VFD itself must be installed in a safe area (control room) or be housed in a separate Explosion Proof Ex d enclosure if located in the hazardous zone. We can recommend compatible VFD specifications.

Q10. What ac motor diagram is needed for the independent cooling fan?

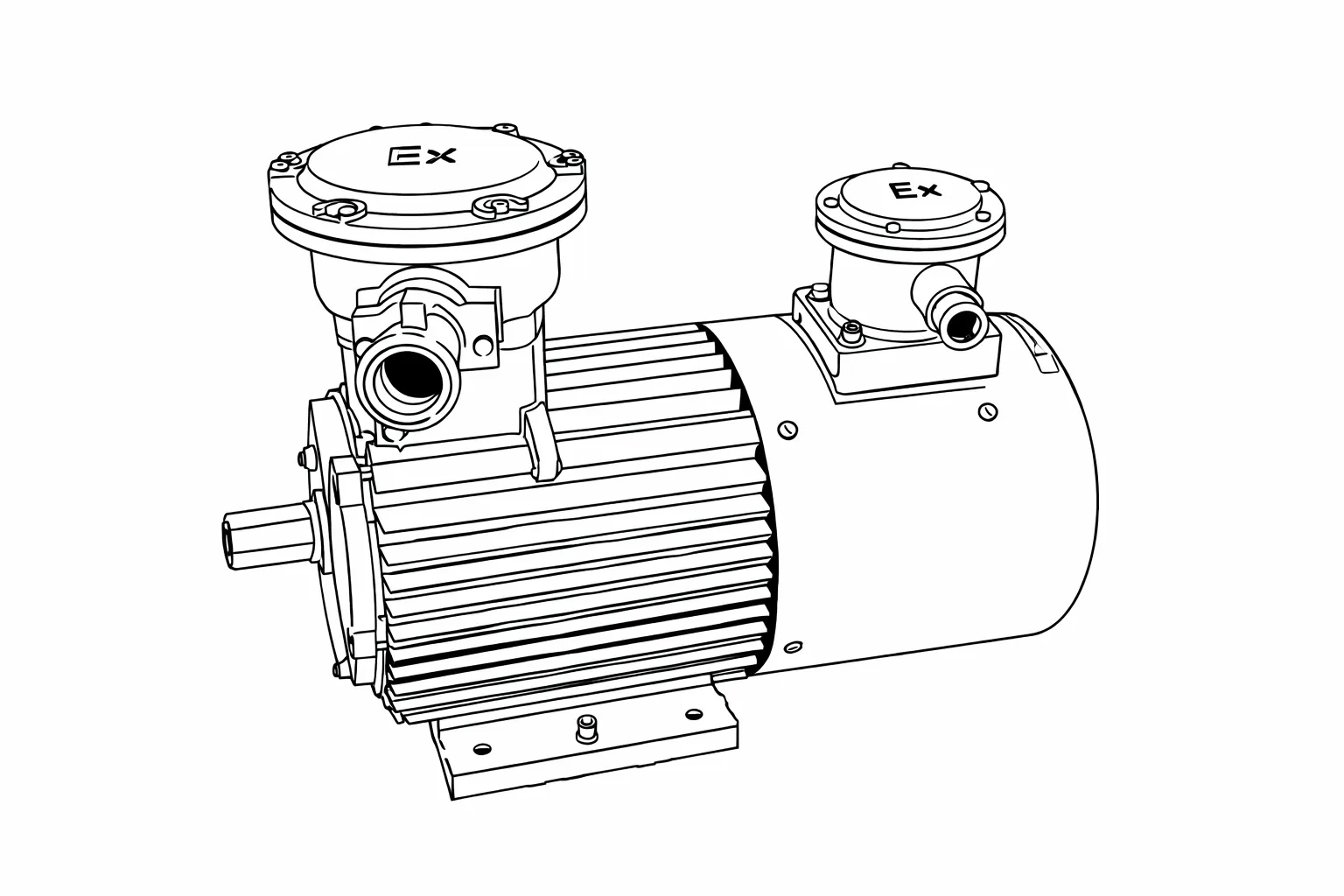

A10. The EP-YBBP has two terminal boxes: one for the main motor (powered by the VFD) and a smaller one for the independent cooling fan. The fan requires a separate, constant power supply (usually 220V or 440V, direct-on-line) to ensure it runs at full speed regardless of the main motor’s speed. A specific diagram is provided in the manual.

Editor: PXY

Related products
